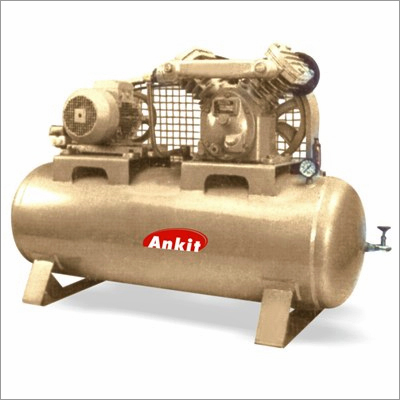

Single Stage Air Compressor

Get a Price/Quote

Product Details:

Phase Single Phase
Frequency 50 Hz
Cooling Method Air Cooled
Control System Automatic Start/Stop
Weight 95 kg
Pressure Capacity 8 Bar
Drive Type Belt Drive
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Single Stage Air Compressor Price And Quantity

Price Or Price Range INR

Duty Cycle 70%
Discharge Outlet Size 1/2 inch
Application Workshop, Garage, Light Industrial Use
Pump Material Cast Iron
Color Blue
No. of Cylinders 1
Maximum Speed 900 RPM

Single Stage Air Compressor Product Specifications

Power Rating 2.2 kW
Flow Rate 12.3 CFM
Frequency 50 Hz
Phase Single Phase
Cooling Method Air Cooled
Air Tank Capacity 160 Litres
Silent No
Voltage 220V
Power Source Electric
Type Of Compressor Single Stage
Allied Equipment Receiver, Safety Valve, Pressure Gauge, Drain Valve
Weight 95 kg
Pressure Capacity 8 Bar
Lubrication Type Oil Lubricated
Configuration Portable
Control System Automatic Start/Stop
Motor Power 3 HP
Noise Level 75 dB
Filtration Grade Standard
Drive Type Belt Drive

Duty Cycle 70%
Discharge Outlet Size 1/2 inch
Application Workshop, Garage, Light Industrial Use
Pump Material Cast Iron
Color Blue
No. of Cylinders 1
Maximum Speed 900 RPM

Product Description

Owing to our expertise in this domain, we are engaged in manufacturing, exporting and supplying superior quality Single Stage Air Compressor. Provided compressor is broadly used in the various industries like chemical plants, sewage disposal plants, paper mills for supplying moderate pressure clean air. Our diligent professionals manufacture this compressor as per international quality standards using the finest quality components. Further, it is tested thoroughly on different parameters to ensure its hassle free functionality at client's end. Our valuable clients can avail this Single Stage Air Compressor from us at competitive prices.

Product Features:

Non-interrupted performance
Long service life
Noise free operations
Low maintenance

Technical Details:

Air Receiver	225 ltrs
Max. Pressure	80 psig
Model	AC 544
No. Of Cylinder	2
Horse Power	7.5 HP
Piston Displacement	34.6 cfm
Compressor Type	Air Compressor
Brand	Ankit

Efficient Performance for Light Industrial Demands

The compressor combines a sturdy cast iron build with belt drive technology and a 3 HP electric motor, achieving a flow rate of 12.3 CFM at up to 8 bar pressure. Its automatic control system and air-cooled design ensure smooth operation, making it a reliable choice for small workshops and garages.

Durability and Safety Prioritized

Manufactured with longevity in mind, the cast iron pump and safety featuressuch as a receiver, safety valve, and pressure gaugemaximize durability and protect users. The oil-lubricated design maintains component health, while the 70% duty cycle supports sustained activity in light industrial settings.

User-Friendly and Portable Configuration

Designed to be compact and portable despite its robust 95 kg weight, this compressor fits seamlessly into varied work environments. Its 1/2-inch discharge outlet and 160-litre tank are tailored for flexibility and steady output, supporting multiple pneumatic tools and workshop needs.

FAQs of Single Stage Air Compressor:

Q: How does the single stage air compressor function in a workshop or garage setting?

A: The compressor takes in atmospheric air, compresses it using a single cast iron cylinder, and stores the compressed air in a 160-litre tank. This air can be used for powering pneumatic tools, inflating tires, and other workshop tasks, all supported by automatic start/stop controls for user convenience.

Q: What are the advantages of using a cast iron pump and oil lubrication in this compressor?

A: A cast iron pump offers high durability and resistance to wear and tear. The oil lubrication system ensures smooth operation, reduces friction between moving parts, and increases the lifespan of the compressor, making it suitable for frequent use in light industrial environments.

Q: When should maintenance be performed on this air compressor?

A: Routine maintenance, such as checking oil levels, inspecting the air filter, and draining the tank, should be performed according to the manufacturers recommendationsgenerally after set hours of usage or at regular intervals to maintain peak efficiency and prevent internal damage.

Q: Where can this compressor be effectively used?

A: It is suitable for use in workshops, garages, and light industrial locations in India, where tasks require reliable compressed air. Its portability and manageable size make it adaptable to various workspaces.

Q: What process is involved in setting up this portable air compressor?

A: Setup includes positioning the compressor on a level surface, connecting to a 220V single-phase power source, attaching the necessary pneumatic tools via the 1/2 inch outlet, and checking safety components like the pressure gauge and valve before operation.

Q: How does the automatic start/stop control system benefit users?

A: The automatic start/stop system enhances safety and efficiency by activating the compressor when air is needed and shutting it off when the desired pressure is reached, reducing energy consumption and user intervention.

Q: What benefits does the air-cooled, belt-driven design offer?

A: The air-cooled system prevents overheating, ensuring safe operation during extended use. The belt-driven mechanism delivers quieter, smoother power transfer, contributing to a steady performance and reducing vibration.
